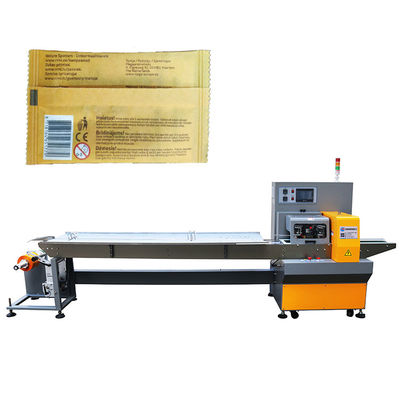

70pcs/Min Pillow Medicine Horizontal Flow Pack Machine

70pcs/Min Pillow Medicine Horizontal Flow Pack Machine

  • 70pcs/Min Pillow Medicine Horizontal Flow Pack Machine
70pcs/Min Pillow Medicine Horizontal Flow Pack Machine
Product Details:
Place of Origin: CHINA
Brand Name: CUKKE
Certification: CE
Model Number: ZS-360
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 5700 per set
Packaging Details: export standard wooden box
Delivery Time: 3 days
Payment Terms: T/T
Supply Ability: 10 sets per day
Contact Now
Detailed Product Description
Weight: 500kg Voltage: Customized
Condition: New Automatic Grade: Automatic
Warranty: 1 Year After-sales Service Provided: Video Technical Support
Power(w): 4.5 Capacity: 70-80pcs/min
Function: Face Mask Filling Sealing Packing Machine Color: Customizable
Control Mode: PLC
High Light:

70pcs/min Horizontal Flow Pack Machine

,

500kg Horizontal Flow Pack Machine

,

70pcs/min Medicine Pack Machine

Automatic Horizontal Flow Pillow Medicine Packing Machine



Flow Packing Machine With 3 Servo Motors Feature:

  1. Adopt the fibre optical sensor to detect the length of product automatically, so the product length is not required.
    2. Detect the products automatically, if no product go into the film, the machine will stop, no empty bag and no cutting the products.
    3. Servo motor controls the horizontal sealing device, air cylinder controls the cutter. Simple operation and convenient maintenance.
    4. More quiet working, more stable running, more delicate construction.
    5. Adopt imports electric appliance, touched screen with easy setting up parameter and fault self-diagnosis function, good understanding for fault on the screen.
    6. High sensitive sensor to track the eye mark, so the position of sealing and cutting will be more accuracy.
    7. Independent PID controls the temperature, so various film materials can be used.
    8. Fixed position and machine stops, no waste the film and no stick on the cutter.
    9. Simple driving system, reliable working, convenient maintenance.



Precise sealing and cutting with high precision photoelectric tracking system;



ZS-360 Machine parameters:



Model ZS-360
Film width Max 360mm
Bag length 80-1000mm
Bag width 40-160mm
Product height 5-30mm
Film roll diameter Max 300mm
Packaging speed 20-120bag/min
Packaging materials OPP, OPP/PE, OPP/CPP
Power 220V,50/60Hz,5.4KW
Machine size (L)4000×(W)930×(H)1370 mm
Machine weight 400Kg



Main performance and characteristics:

1.controlled by three servos;

2.touch screen display screen, easy to operate, machine working state clear;
3.can automatically adjust bag length according to material length without manual setting;.
4.reduce the labor intensity of operators and improve production efficiency

5.can store a variety of product parameters and formulations, without repeated settings, download can be used;
