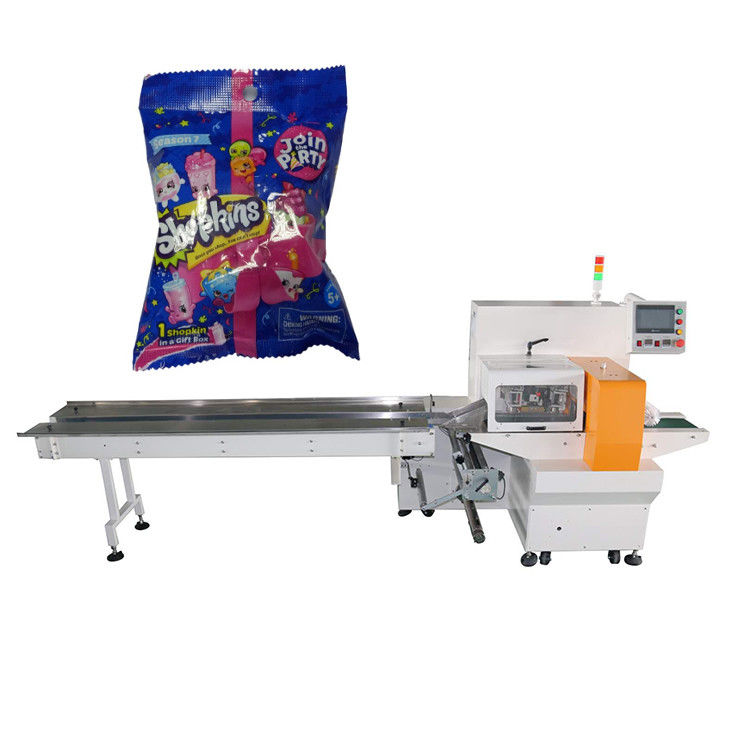

Mitts Flow Packing Machine

Mitts Flow Packing Machine
Mitts Flow Packing Machine

Large Image :  Mitts Flow Packing Machine

Product Details:
Place of Origin: CHINA
Brand Name: CUKKE
Certification: CE
Model Number: ZS-580X
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 5700 per set
Packaging Details: export standard wooden box
Delivery Time: 3 days
Payment Terms: T/T
Supply Ability: 10 sets per day
Detailed Product Description
Weight: 500kg Voltage: Customized
Condition: New Automatic Grade: Automatic
Warranty: 1 Year After-sales Service Provided: Video Technical Support
Power(w): 4.5 Capacity: 70-80pcs/min
Function: Face Mask Filling Sealing Packing Machine Color: Customizable
Control Mode: PLC
High Light:

Mitts Flow Packing Machine

,

OPP Flow Packing Machine

,

CPP Pillow Packing Machine

Automatic Horizontal Flow Pillow Mitts Packing Machine





Main Features:

1) Dual frequency conversion control,bag length can be set and cut in one step ,saving time and film.
2) High sensitivity photoelectric eye color tracing ,numerical input of cutting sealing position for estra accuracy.
3) Positioned stop function ,without sticking knife or wasting film.
4) Simple driving system,reliable working ,convenient maintenance.
5) All control is realized through software ,easy for function adjusting and technical upgrade .





Machine parameters:



机型(Model) ZS-580X
薄膜宽度(Film width) Max 580mm
制袋长度(Bag length) 120-1000mm
制袋宽度(Bag width) 100-250mm
产品高度(Product height) 5-75mm
膜卷直径(Film roll diameter) Max 300mm
包装速度(Packaging speed) 20-120bag/min
包装材料(Packaging materials) OPP, OPP/PE, OPP/CPP
电源规格(Power) 220V,50/60Hz,4.25KW
机器尺寸(Machine size) (L)4210×(W)1070×(H)1400 mm
机器重量(Machine weight) 650Kg



Mitts Flow Packing Machine 0




Main performance and characteristics:

1.controlled by three servos;

2.touch screen display screen, easy to operate, machine working state clear;
3.can automatically adjust bag length according to material length without manual setting;.
4.reduce the labor intensity of operators and improve production efficiency

5.can store a variety of product parameters and formulations, without repeated settings, download can be used;
