Place of Origin: | CHINA |
Brand Name: | Chanfer |
Certification: | CE |
Model Number: | CFZD30-35 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 25000 per set |
Packaging Details: | export standard wooden box |
Delivery Time: | 10-15 days |
Supply Ability: | 1 set per day |
Voltage: | 220V380V | Automatic Grade: | Automatic |
---|---|---|---|
Condition: | New | After-sales Service Provided: | Video Technical Support |
Driven Type: | Electric | Packaging Type: | Film |
Application: | Food,Medical,Commodity,Beverage | Packaging Material: | Plastic |
Usage: | Food,Bag,Paper,etc | Function: | Automatic,High Speed |
Paging Mode: | Friction Tachometer,friction Type | ||
High Light: | A4 Paper Flow Wrap Packing Machine,OPP PE Flow Wrap Packing Machine,OPP A4 Paper Packing Machine |

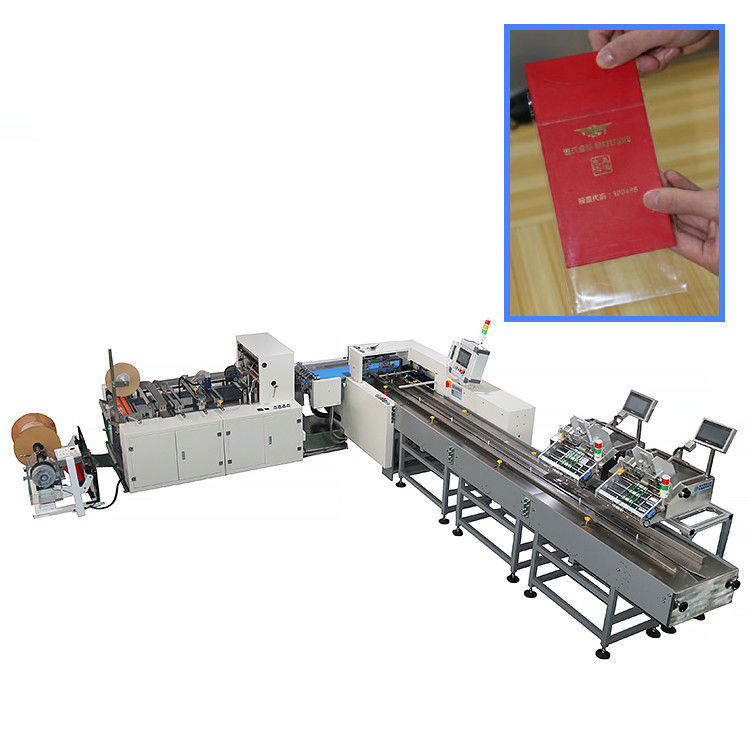

OPP/PE self adhesive bag packing machine for A4 paper and books
Self-adhesive bag packing machine of CHANFER Package Company provides you with more diversified solutions for packaging. New design concepts and packaging methods of self-adhesive bags bring changes in former manual bagging methods. The designer considers from the perspective of users and the machine is featured by its good taste in appearance, simplicity in operation, convenience in change of designs and so forth.
Scope of Application:
Regular sheet products are the main packaging objects of this equipment. Such as cards, red envelopes, brochures, paper bags, warranty cards, envelopes, greeting cards, hangtag, notebooks, postcards, tag and other products.
Features:
1. CFZD30-35 multi-function bagging machine, with new structure and diverse functions, saving time and labour;
2. Multi-servo control which enables multi-function fast switching. The machine features debugging convenience and high performance;
3. The original flat-bag heat sealing technology which meets the customer requirements for the quality of bags and different functions to a greater extent;
4. Finished product automatic transmission and counting function, a lot of manpower is saved, the problem of manpower shortage is solved, to reach a higher degree of automation integration;
5. Temperature independent PID intelligent control. Temperature stability, better for a variety of packaging materials;
6. Color touch screen, easy and quick setting.
Product specifications and technical parameters:
Item | Description | |
Packaging Materials | OPP, CPP, PP material; it requires the use of a roll,, the inner shaft diameter of 75mm; the film surface is required to be flat, the edge should not be wave-shaped, contrast of color scale and packaging film background color is required to be obvious. | |
Width Size of Bagging | 180mm-280mm | |
Maximum Length of Bagging | 350mm | |
Packaging Speed | 20-45 Package/Minute | |
Film Thickness | 0.025-0.07mm | |
Film Outer Diameter | Maximum≤450mm | |
Film Outer Diameter of Bagging | Maximum diameter≤300 mm | |
The height of Packing products |
1mm-20mm | |
weight | 2000KG | |
Energy Requirements | Power Supply | 380V, 50HZ |
External | Overall Dimension | Length 6000mm×Width 4000mm |
Operation height | 800mm |
Advantages
1. The two ways of self-adhesion sealing and hot-cutting three-side sealing are selectable;
2. Having automatic skew detection function, which reduces product packing wastage;
3. Capable of voluntary accommodation within bag-width designated range, as enables multi-specification products to be universal for one equipment unit;
4. Fitted with one-key reset function and double-direction operation control bit, leading to more convenient production debugging;
5. Possessing count memory function with precise calculation, as helps after-package collection and box-loading;
6. Coach--free operation coach from professional engineers, as continues until operation mastery;
8. Perfect after-sale service--one-year-long complete machine free repair and life-long maintenance, problem solution achieved within 24 hours;
9. Having stable performance in endurant use, average working life being 10 years.
