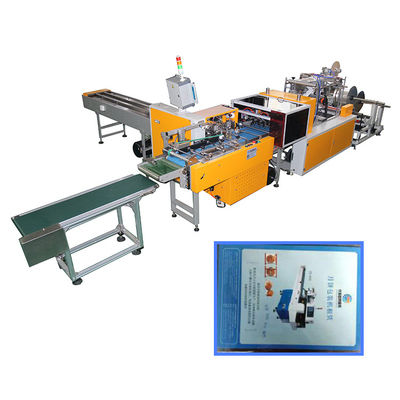

PE Desk Calendar Packing Machine

PE Desk Calendar Packing Machine
PE Desk Calendar Packing Machine

Large Image :  PE Desk Calendar Packing Machine

Product Details:
Place of Origin: CHINA
Brand Name: Chanfer
Certification: CE
Model Number: CFZD30-35
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 25000 per set
Packaging Details: export standard wooden box
Delivery Time: 10-15 days
Supply Ability: 1 set per day
Detailed Product Description
Voltage: 220V380V Automatic Grade: Automatic
Condition: New After-sales Service Provided: Video Technical Support
Driven Type: Electric Packaging Type: Film
Application: Food,Medical,Commodity,Beverage Packaging Material: Plastic
Usage: Food,Bag,Paper,etc Function: Automatic,High Speed
Paging Mode: Friction Tachometer,friction Type
High Light:

PE Desk Calendar Packing Machine


45 Package/Min Calendar Packing Machine


45 Package/Min Flow Packing Machine

OPP/PE Self Adhesive Bag Packing Machine For Desk Calendar




Self-adhesive bag packing machine of CHANFER Package Company provides you with more diversified solutions for packaging. New design concepts and packaging methods of self-adhesive bags bring changes in former manual bagging methods. The designer considers from the perspective of users and the machine is featured by its good taste in appearance, simplicity in operation, convenience in change of designs and so forth.

Scope of Application:

Regular sheet products are the main packaging objects of this equipment. Such as cards, red envelopes, brochures, paper bags, warranty cards, envelopes, greeting cards, hangtag, notebooks, postcards, tag and other products.


1. CFZD30-35 multi-function bagging machine, with new structure and diverse functions, saving time and labour;

2. Multi-servo control which enables multi-function fast switching. The machine features debugging convenience and high performance;

3. The original flat-bag heat sealing technology which meets the customer requirements for the quality of bags and different functions to a greater extent;

4. Finished product automatic transmission and counting function, a lot of manpower is saved, the problem of manpower shortage is solved, to reach a higher degree of automation integration;

5. Temperature independent PID intelligent control. Temperature stability, better for a variety of packaging materials;

6. Color touch screen, easy and quick setting.


Product specifications and technical parameters:

Item Description
Packaging Materials OPP, CPP, PP material; it requires the use of a roll,, the inner shaft diameter of 75mm; the film surface is required to be flat, the edge should not be wave-shaped, contrast of color scale and packaging film background color is required to be obvious.
Width Size of Bagging 180mm-280mm
Maximum Length of Bagging 350mm
Packaging Speed 20-45 Package/Minute
Film Thickness 0.025-0.07mm
Film Outer Diameter Maximum≤450mm
Film Outer Diameter of Bagging Maximum diameter≤300 mm

The height of

Packing products

weight 2000KG
Energy Requirements Power Supply 380V, 50HZ
External Overall Dimension Length 6000mm×Width 4000mm
Operation height 800mm



Fitted with one-key reset function and double-direction operation control bit, leading to more convenient production debugging;
