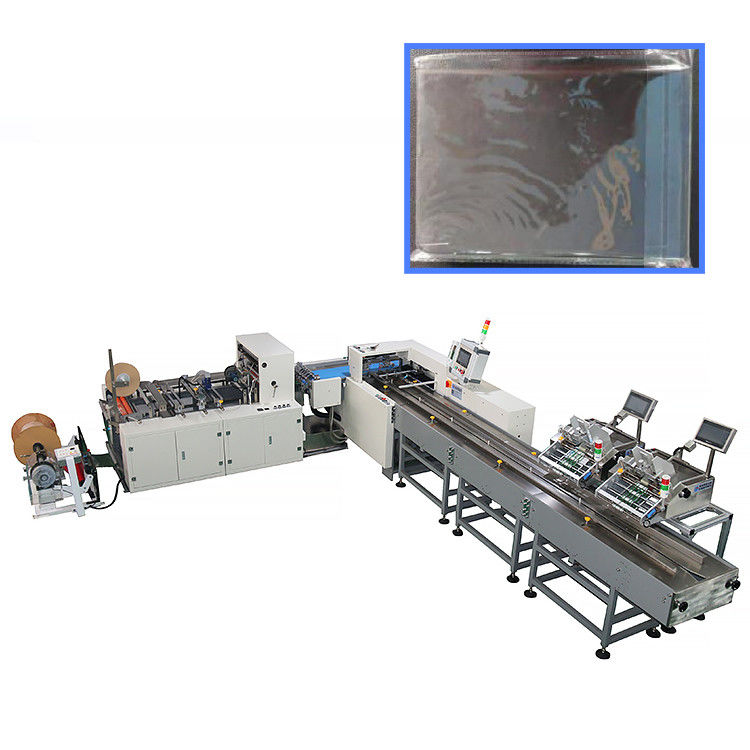

45 Package/Min Express Mail Envelope Packing Machine

45 Package/Min Express Mail Envelope Packing Machine

  • 45 Package/Min Express Mail Envelope Packing Machine
45 Package/Min Express Mail Envelope Packing Machine
Product Details:
Place of Origin: CHINA
Brand Name: Chanfer
Certification: CE
Model Number: CFZD30-35
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 25000 per set
Packaging Details: export standard wooden box
Delivery Time: 10-15 days
Supply Ability: 1 set per day
Contact Now
Detailed Product Description
Voltage: 220V380V Automatic Grade: Automatic
Condition: New After-sales Service Provided: Video Technical Support
Driven Type: Electric Packaging Type: Film
Application: Food,Medical,Commodity,Beverage Packaging Material: Plastic
Usage: Food,Bag,Paper,etc Function: Automatic,High Speed
Paging Mode: Friction Tachometer,friction Type
High Light:

Express Mail Envelope Packing Machine

,

45 Package/Min Flow Wrap Packing Machine

,

380V Flow Wrap Packing Machine

OPP/PE self adhesive bag packing machine for A4 paper and books







Scope of Application:

Regular sheet products are the main packaging objects of this equipment. Such as cards, red envelopes, brochures, paper bags, warranty cards, envelopes, greeting cards, hangtag, notebooks, postcards, tag and other products.



Product specifications and technical parameters:

Item Description
Packaging Materials OPP, CPP, PP material; it requires the use of a roll,, the inner shaft diameter of 75mm; the film surface is required to be flat, the edge should not be wave-shaped, contrast of color scale and packaging film background color is required to be obvious.
Width Size of Bagging 180mm-280mm
Maximum Length of Bagging 350mm
Packaging Speed 20-45 Package/Minute
Film Thickness 0.025-0.07mm
Film Outer Diameter Maximum≤450mm
Film Outer Diameter of Bagging Maximum diameter≤300 mm

The height of

Packing products

1mm-20mm
weight 2000KG
Energy Requirements Power Supply 380V, 50HZ

External Overall Dimension Length 6000mm×Width 4000mm
Operation height 800mm



Advantages



1. The two ways of self-adhesion sealing and hot-cutting three-side sealing are selectable;

2. Having automatic skew detection function, which reduces product packing wastage;

3. Capable of voluntary accommodation within bag-width designated range, as enables multi-specification products to be universal for one equipment unit;

4. Fitted with one-key reset function and double-direction operation control bit, leading to more convenient production debugging;

5. Possessing count memory function with precise calculation, as helps after-package collection and box-loading;

6. Coach--free operation coach from professional engineers, as continues until operation mastery;



8. Perfect after-sale service--one-year-long complete machine free repair and life-long maintenance, problem solution achieved within 24 hours;

9. Having stable performance in endurant use, average working life being 10 years.
